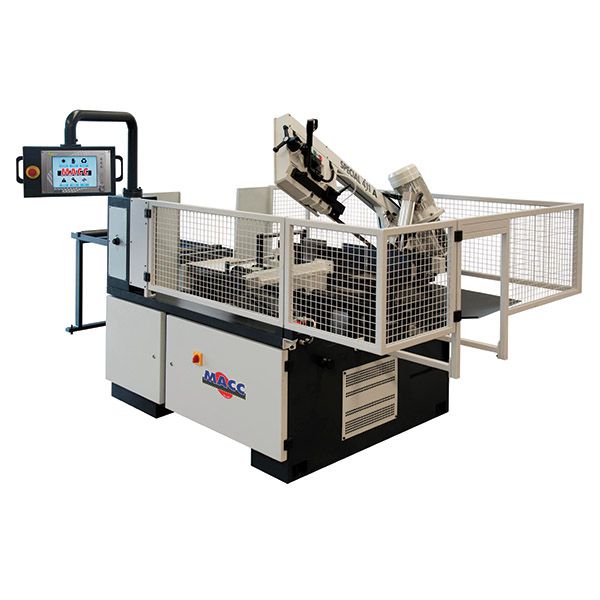

MACC BANDSAW, WITH TOUCH SCREEN CONTROL PANEL, AUTO & MANUAL, 300MM CAP, FULLY GUARDED, SWIVEL HEAD, 415V 3PH
Stock Code:
MB-411AG-3
Brisbane:
In Stock
Stock Locations
-
Melbourne:Out of Stock
-
Perth:Out of Stock
-
Tasmania:Out of Stock
RRP:
$44,995.00
This item is considered bulky. Please Click Here to view more info on bulky goods.
Features
- Italian made quality.
- Fully guarded & fully automatic C.N.C. controlled machine.
- Can be used in manual, semi-automatic & fully automatic operation.
- 2-way swivel head enables from 0° to 60° mitre cuts.
- 10" touch screen control panel.
- 39 Programs, each with 50 steps with relevant piece-counter.
- Digital control of quality and cut length.
- Hydraulic material feeder with 600mm stroke & no limit of length.
- Blade cleaning device and washdown hose.
- Recirculating coolant system.
- Safety emergency stop switch.
- 12 months warranty.
- Comes complete with stand and blade.
- Optional software for creating a series of cutting profiles from a computer for use on the Special 411AG.
Fully-Automatic Operation:
- Material feeding.
- Fixed vice lock.
- Feeding carriage return to the fixed measure.
- Rotation of the blade and delivery of the coolant, bow down feed until the finishing of the cut.
- Bow return.
- Vice opening.
- Cycle repetition.
End of program, blade motor stops, coolant delivery stops.
Specifications
| Motor | 2.15hp Three Phase (415V) | ||
| Blade Speed | Variable 20-90 mpm | ||
| Blade Size | 3200mm x 27mm x 0.9mm | ||
| Weight | 575kg | ||
| Cutting Capacity | |||
|---|---|---|---|
| Cutting Angle | Round | Square | Rectangle |
| 90° | 300mm | 280mm | 300 x 280mm |
| 45° Right | 225mm | 215mm | 225 x 130mm |
| 60° Right | 140mm | 140mm | 140 x 140mm |
| 45° Left | 180mm | 160mm | 180 x 110mm |
