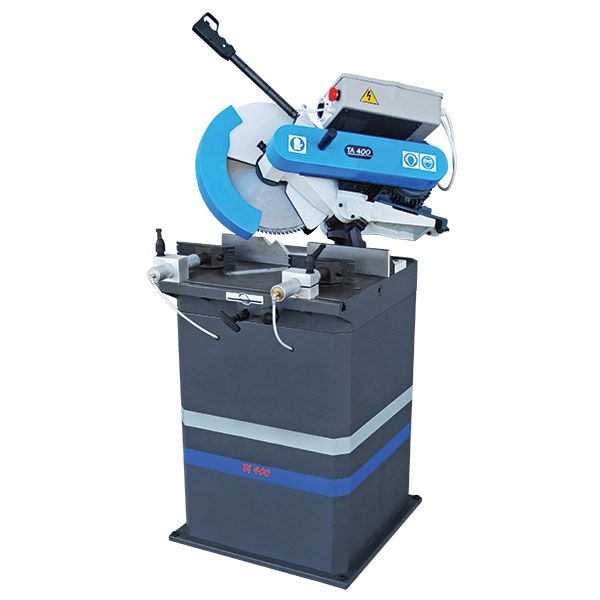

MACC 400MM 3PH 3,000RPM NON FERROUS CUTTING SAW WITH PNEUMATIC VICE & COOLANT SPRAY
Stock Code:
MC-TA400P-3
Brisbane:
Out of Stock
Stock Locations
-
Melbourne:Out of Stock
-
Perth:Out of Stock
-
Tasmania:Out of Stock
RRP:
$6,995.00
This item is considered bulky. Please Click Here to view more info on bulky goods.
Features
- Italian made quality, extra heavy-duty.
- Compound mitre, non-ferrous metal cutting saw.
- Designed for cutting aluminium, copper, brass etc.
- Swivel head 45° right and left.
- Mitre head 45° left.
- Trigger switch operation.
- Twin manual sliding vices with teflon jaws.
- Fully recirculating coolant system.
- Includes Stand
- As per TA400, with additional pneumatic features.
1. Two pneumatic spring return vices, automatically clamps the material when the trigger switch is pulled.
2. Supply of cutting fluid to the blade is also activated.
3. Material is then released upon return of cutting head, & fluid mist de-activated.
- Safety emergency stop switch.
- 12 months warranty.
- Blade sold separately.
- Compressor required to power vice.
Specifications
| Motor | 3hp Three Phase (415V) | ||
| Blade Speed | Single Speed 3000rpm | ||
| Blade Size | 400mm | ||
| Blade Bore | 32mm | ||
| Weight | 190kg | ||
| Cutting Capacity | |||||
|---|---|---|---|---|---|
| Cutting Angle | Solid Round | Round | Square | Rectangle | |
| 90° | 60mm | 140mm | 110mm | 180 x 100mm | |
| 45° (L & R) | 60mm | 130mm | 100mm | 150 x 100mm | |
More Information
Description
Labor & Pneumatic fittings cost $485+gst (Air Tool Serv) NEEDS 1 x MC-STANDLGE
