Bulky

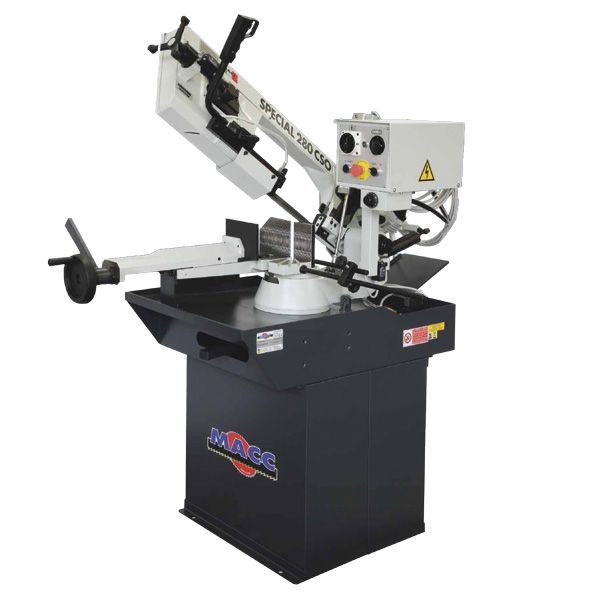

MACC BANDSAW, 220MM CAP, SWIVEL HEAD, RH MITRE, 2 SPEED 415V 3PH, HYD DOWNFEED (INC STAND IN SEPARATE BOX)
Stock Code:
MB-280CSO-3
Brisbane:
Out of Stock
Stock Locations
-
Melbourne:Out of Stock
-
Perth:Out of Stock
-
Tasmania:Out of Stock
RRP:
$7,995.00
This item is considered bulky. Please Click Here to view more info on bulky goods.
Features
- Italian made quality.
- 1-way swivel head enables from 0° to 60° mitre cuts.
- Dual mode operation.
- Trigger switch with manual down feed for small quick cuts.
- Control panel with fully adjustable hydraulic down feed & automatic shut-off at end of cut, for cutting larger material. - Incorporated recirculating coolant system.
- Adjustable material stop for repetitive production.
- Safety emergency stop switch.
- 12 months warranty.
- Comes complete with stand & blade.
Specifications
| Motor | 1.5hp Three Phase (415V) | ||
| Blade Speed | 2 Speed 32 / 66mpm | ||
| Blade Size | 27mm x 0.9mm x 2450mm | ||
| Weight | 230kg | ||
| Cutting Capacity | ||||
|---|---|---|---|---|
| Cutting Angle | Round | Square | Rectangle | |
| 90° | 220mm | 215mm | 250 x 155mm | |
| 45° (L & R) | 160mm | 150mm | 160 x 110mm | |
| 60° (R) | 100mm | 85mm | 95 x 80mm | |
