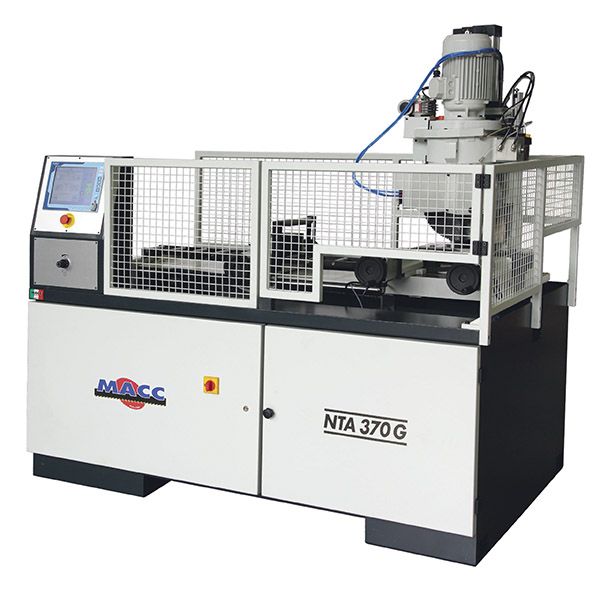

MACC 370MM VERTICAL COLDSAW, WITH TOUCH SCREEN CONTROL PANEL, AUTO MATERIAL FEED, AUTO SWIVEL HEAD

Stock Code:
MC-NTA370G
Brisbane:
Out of Stock

Stock Locations

  • Melbourne:
    Out of Stock
  • Perth:
    Out of Stock
  • Tasmania:
    Out of Stock
POA

This item is considered bulky. Please Click Here to view more info on bulky goods.

Features

  • Italian made quality.
  • Automatic Swivel head between 45° left & 45° right.
  • Programmable C.N.C. hydraulic machine performs the following operations automatically during the cutting cycle:
    - Material feeds in
    - Vice closes, blade motor starts & coolant is delivered
    - Cutting head downstroke & feeding carriage returns
    - Return of head, blade motor & coolant stop
    - Vice re-opens
    - Cycle repeats
  • Swivel head 0° to 45° to the right and left.
  • Recirculating coolant system with electric pump.
    - Creates instant flow of coolant.
    - Flood applied coolant creates a cooler cut, for increased finish quality & blade life.
  • Safety emergency stop switch.
  • Dual pneumatic vices.
  • Vice pressure regulator
  • Head lowering adjustment.
  • Guarded cutting area.
  • 1.5m Infeed roller conveyor.
  • Comes complete with blade & stand.
  • Material feeder stroke: 1000mm
  • Overall dimensions: 3.5m x 1.2m x 1.9m
  • 12 months warranty.

    • Specifications

    Motor 4hp Three Phase (415V)
    Blade Speed Variable 0-100 mpm
    Blade Size 370mm
    Blade Bore 32mm
    Weight 900kg

    Cutting Capacity
    Cutting Angle Round Square Rectangle
    90° 120mm 110mm 120 x 100mm
    45° (L&R) 120mm 110mm 120 x 100mm
