  • MACC 370MM VERTICAL COLDSAW, WITH TOUCH SCREEN CONTROL PANEL, AUTO MATERIAL FEED, MANUAL SWIVEL HEAD
Bulky

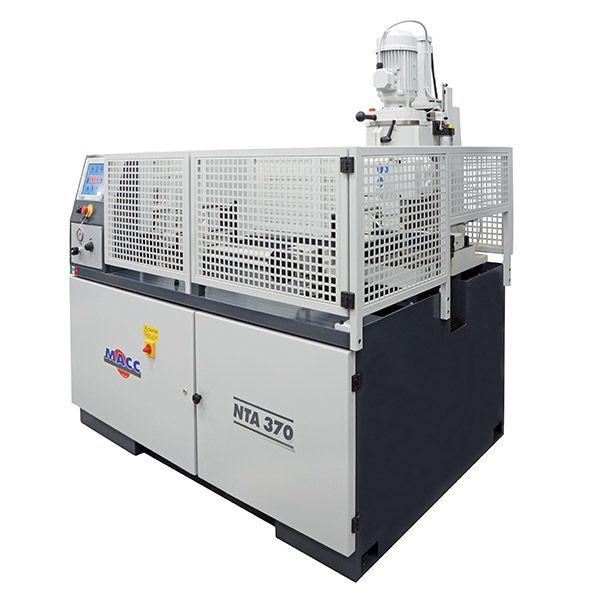

MACC 370MM VERTICAL COLDSAW, WITH TOUCH SCREEN CONTROL PANEL, AUTO MATERIAL FEED, MANUAL SWIVEL HEAD

Stock Code:
MC-NTA370
Brisbane:
In Stock

Stock Locations

  • Melbourne:
    Out of Stock
  • Perth:
    Out of Stock
  • Tasmania:
    Out of Stock
RRP:
$54,900.00
Find a Stockist
Make an Enquiry
Add to Favourites
Watch Video

Downloads

This item is considered bulky. Please Click Here to view more info on bulky goods.

Features

  • Italian made quality.
  • Perfect machine for cutting very large volumes of Stainless Steel tube and bar
  • Swivel head between 0° to 45° left & right. Head is swivelled manually by the machine operator.
  • Touch Screen display to control machine
  • Programmable C.N.C. hydraulic machine performs the following operations automatically during the cutting cycle:
    - Material feeds in
    - Vice closes, blade motor starts & coolant is delivered
    - Cutting head downstroke & feeding carriage returns
    - Return of head, blade motor & coolant stop
    - Vice re-opens
    - Cycle repeats
  • Recirculating coolant system with electric pump.
    - Creates instant flow of coolant.
    - Flood applied coolant creates a cooler cut, for increased finish quality & blade life.
  • Safety emergency stop switch.
  • Dual pneumatic vices.
  • Head lowering adjustment.
  • Guarded cutting area.
  • Comes complete with blade & stand.
  • Material feeder stroke: 1000mm
  • Infeed roller bed: 1500mm
  • Overall dimensions: 3.5m x 1.2m x 1.9m
  • 12 months warranty.

    • Specifications

    Motor 4hp Three Phase (415V)
    Blade Speed Variable 0-100 mpm
    Blade Size 370mm
    Blade Bore 32mm
    Weight 900kg

    Cutting Capacity
    Cutting Angle Round Square Rectangle
    90° 130mm 120mm 170 x 100mm
    45° (L&R) 130mm 110mm 140 x 100mm
