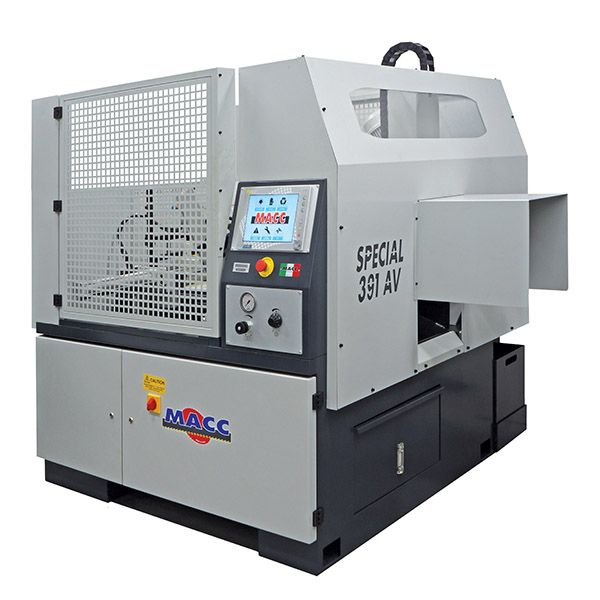

MACC BANDSAW, WITH TOUCH SCREEN CONTROL PANEL AND DUAL VERTICAL VICES FOR BUNDLE CUT, FULLY AUTO DUAL COLUMN, 300MM CAP, 20-90MPM, STRAIGHT, 415V 3PH
Stock Code:
MB-391AV-MAX
Brisbane:
In Stock
Stock Locations
-
Melbourne:Out of Stock
-
Perth:Out of Stock
-
Tasmania:Out of Stock
RRP:
$57,900.00
This item is considered bulky. Please Click Here to view more info on bulky goods.
Features
- Italian made quality
- Dual column design cuts solid material faster and with increased finish quality
- Dual vertical vices for bundel cutting
- Fully automatic C.N.C. controlled machine
- 10" Touch screen control panel
- 39 Programs, each with 50 steps with relevant piece-counter
- Digital control of quality and cut length
- Hydraulic material feeder with 600mm stroke & no limit of length
- Fully guarded
- Swivel head enables from 0° to 60° mitre cuts
- Incorporated recirculating coolant system
- Safety emergency stop switch
- Comes complete with stand & blade
- Optional software for creating a series of cutting profiles from a computer for use on the Special 391AV MAX
Fully-Automatic Operation:- Material feeding.
- Fixed vice lock.
- Rotation of the blade and delivery of the coolant, bow downfeed until the finishing of the cut, feeding carriage return to the fixed measure.
- Bow return, blade revolution and coolant delivery stopping.
- Vice opening.
- Cycle repetition.
Specifications
| Motor | 2.15hp Three Phase (415V) | ||
| Blade Speed | Variable 20-90 mpm | ||
| Blade Size | 27mm x 0.9mm x 3200mm | ||
| Weight | 960kg | ||
| Cutting Capacity | ||||
|---|---|---|---|---|
| Cutting Angle | Solid Round | Round | Square | Rectangle |
| 90° | 230mm | 300mm | 290mm | 320 x 290mm |
| 45° Right | 200mm | 230mm | 230mm | 230 x 230mm |
| 60° Right | 130mm | 130mm | 125mm | 130 x 125mm |
