Bulky

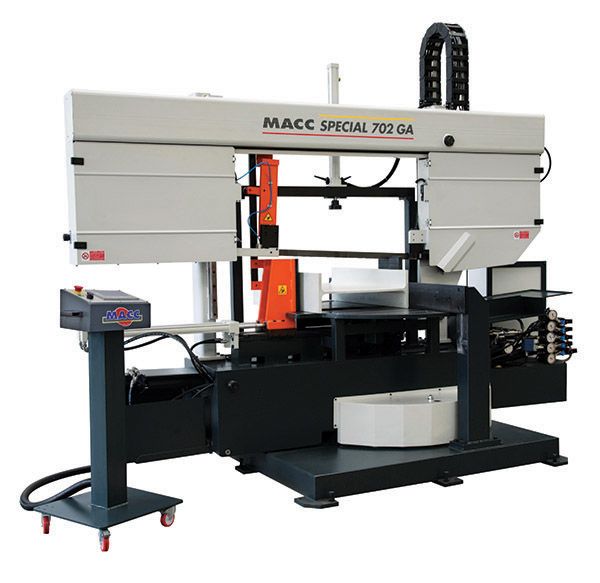

MACC DUAL COLUMN BANDSAW, WITH TOUCH SCREEN AND VERTICAL VICE FOR BUNDLE CUT, 550 x 700MM CAP, POWERED SWIVEL HEAD, DUAL MITRE, VARIABLE SPEED 415V 3PH
Stock Code:
MB-702GA-MAX
Brisbane:
Out of Stock
Stock Locations
-
Melbourne:Out of Stock
-
Perth:Out of Stock
-
Tasmania:Out of Stock
POA
This item is considered bulky. Please Click Here to view more info on bulky goods.
Features
- Italian made quality
- Automatic motorised 2-way swivel head 0° to 60°
- Dual column for accuracy and rigidity
- Dual mitre
- Chip extractor
- Microlubrication system
- Vertical vice for bundel cutting
- 7" touch screen control panel
- Semi-automatic programmable operation
- High-capacity variable speed control motor with inverter
- Electro-mechanical blade tensioner
- Safety emergency stop switch
- Comes complete with stand & blade
- Entry 2m x 700mm powered roller conveyors & exit 2m x 700mm powered roller conveyors & vertical rollers
- Optional software for creating a series of cutting profiles from a computer for use on the Special 702 GA MAX
- Optional entry 2m x 700mm powered roller conveyors & exit 2m x 700mm powered roller conveyors & vertical rollers
Also available:
- Non motorised head model.
- Non swivel head model.
Semi-Automatic Function
- Operator Inserts Material
- Vice Clamps Material
- Operator Press Start Button
- Blade Motor Starts
- Bow Lowers & Cuts Material
- Blade Motor Stops
- Press Up Button, Bow Rises
- Push Button To Open Vice
Specifications
| Motor | 5.36hp Three Phase (415V) | ||
| Blade Speed | Variable 20 - 63 mpm | ||
| Blade Size | 41mm x 1.3mm x 5740mm | ||
| Weight | 2740kg | ||
| Cutting Capacity | |||
|---|---|---|---|
| Cutting Angle | Round | Square | Rectangle |
| 90° | 550mm | 550mm | 700 x 550mm |
| 45° Right | 460mm | 460mm | 550 x 460mm |
| 45° Left | 460mm | 460mm | 550 x 460mm |
| 60° Left | 270mm | 270mm | 550 x 270mm |
